Site-to-Site VPN with Safous Linux Agent

Use Cases

• Site-to-Site VPN between branch office and head office, or between remote sites and the data center (DC)

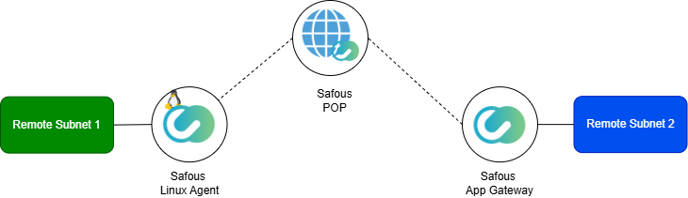

Diagram

Components to set up:

1. Remote Subnet 1:
   Set the network gateway to the Linux Server running the Safous Agent.

2. Linux Server with Safous Linux Agent:
   Enable IP forwarding and set up tunneling using the Safous Agent.

3. Safous POP:
   No configuration required by the user.

4. Safous App Gateway:
   Configure the network applications in Remote Subnet 2 to be accessible by the Safous Agent.

5. Remote Subnet 2:
   No configuration required by the user.

How to

On Safous App Gateway (via Admin Portal)

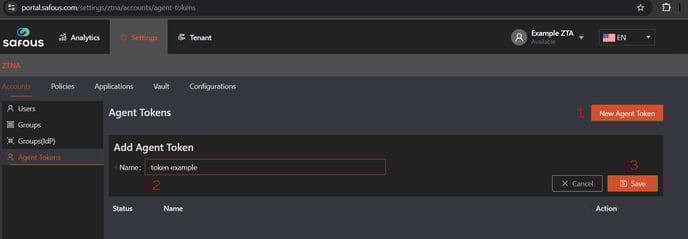

1. Create an Agent Token

   • Navigate to: Settings > Accounts > Agent Token > New Agent Token.

   • Enter a name for the token and click Save.

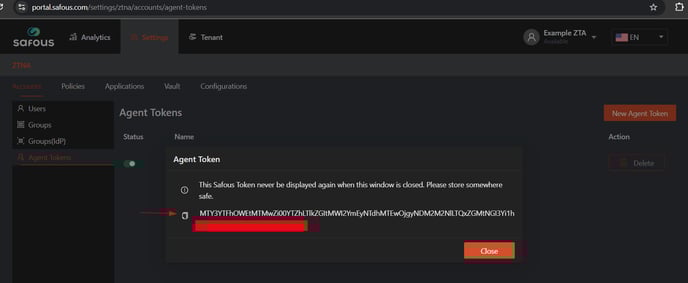

   • A new token will be generated—be sure to save it in a secure location, as it will only be shown once.

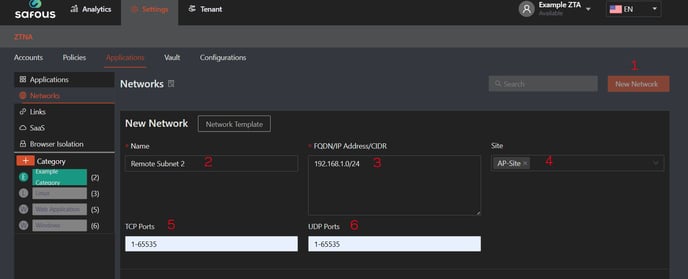

2. Create a Network Application

   • Add the subnet for Remote Subnet 2, including the relevant ports and site association.

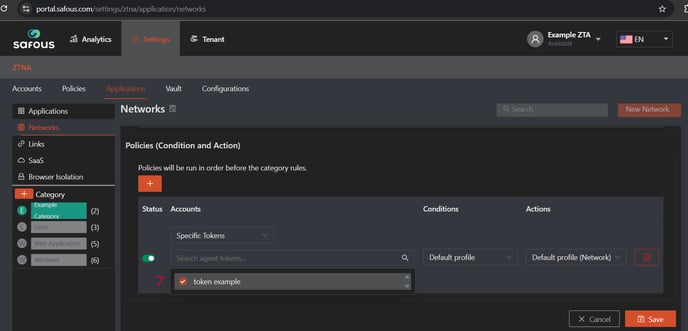

   • Define an access rule that allows the newly created agent token to access this network application.





On Linux Server with Safous Agent

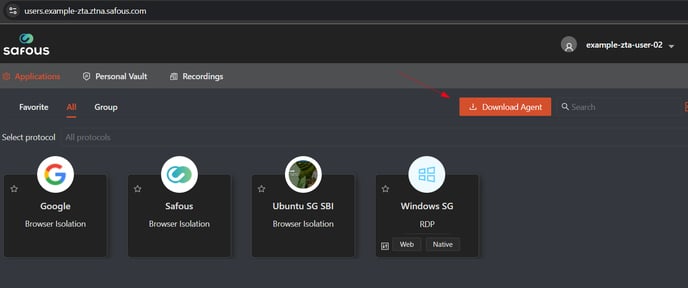

1. Download Agent in User portal

   • Log in to the user portal.

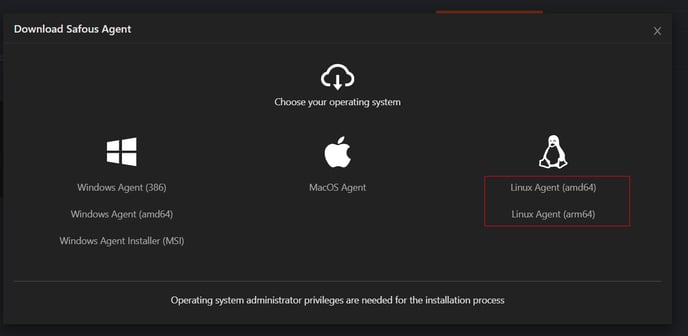

   • Click "Download Agent" and select the Linux Agent.

   • Transfer the file to your Linux server using scp or another tool.





2. Install the agent

   apt update
   apt install libayatana-appindicator3-1
   mv linux-amd64.deb <tenant>.ztna.safous.com.deb
   dpkg -i <tenant>.ztna.safous.com.deb

3. Authenticate and start tunneling

   cd /usr/local/share/cyolo/connect/
   ./connect auth login https://login.<tenant>.ztna.safous.com -k <Safous Agent Token>
   ./connect tunnel up
   ./connect tunnel status

4. Set the Linux Server as a Network Gateway

   sudo nano /etc/sysctl.conf
   net.ipv4.ip\_forward = 1
   sudo systctl -p

5. Configure iptables (replace enp0s3 with your actual interface)

   sudo iptables -t nat -A POSTROUTING -o tun0 -j MASQUERADE
   sudo iptables -A FORWARD -i enp0s3 -o tun0 -j ACCEPT
   sudo iptables -A FORWARD -i tun0 -o enp0s3 -m state --state RELATED,ESTABLISHED -j ACCEPT

6. Verify routing

   netstat -nr

   Ensure that a route to Remote Subnet 2 exists via the tun0 interface.

On Remote Subnet 1

• Configure all machines in Remote Subnet 1 to use the IP address of the Linux Server’s local interface (enp0s3, for example) as their default gateway.

note

Do not use the tun0 interface IP as the gateway.
