Monitoring

Safous’s Admin Console includes three types of logs:

  • Activity logs
  • Audit logs
  • System logs.

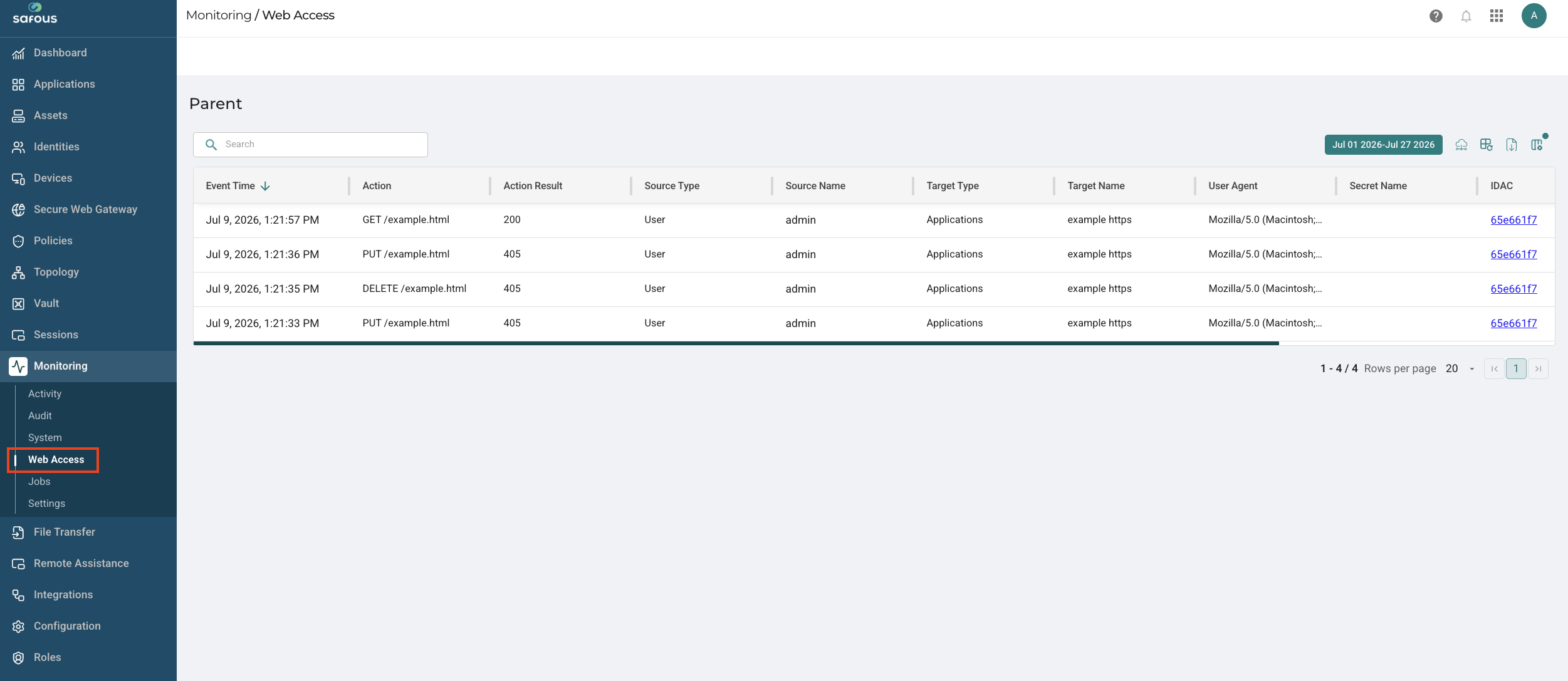

The Safous platform supports the exporting of activity, audit, and system logs - along with web-based access logs via SYSLogs. Below is a description of each type of logging system.

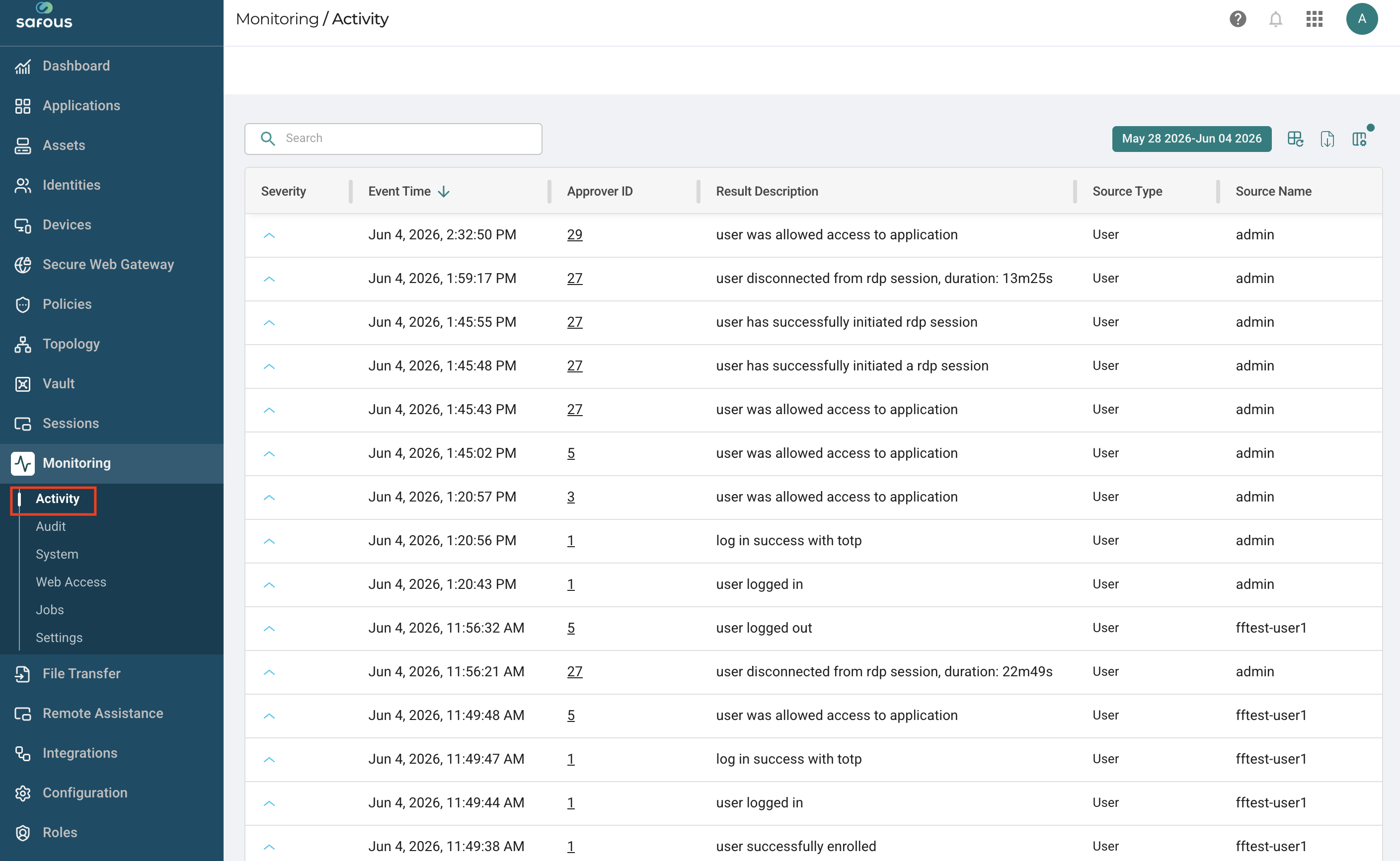

Activity Logs​

Activity logs manage and reflect all actions performed by users related to applications. The Activity logs are displayed in a table. On the top left-hand side of the table, there is a boolean search option for data displayed in the columns that appear in the logs. On the top right side of the table, there is a calendar to select the period of time in which the data should be presented.

The Activity log table presents data with the following columns:

  • Event ID: A specific number that relates to the specific event/
  • Date and Time: The date and time that the event occurred, in local time.
  • IDAC: The ID number of the IDAC in which the event occurred. The IDAC is hyperlinked, and when clicked, the IDACS and Edges screen displays under Configurations > IDACs and Edges.
  • Site: The site in which the event occurred, hyperlinked to the Sites screen under Configurations > Sites.
  • User name: The user name.
  • Authority: The policy that is implicated in the user’s activity, e.g., “login_policy,” “users_policy,” “console_policy,” “supervisor_policy,” or “general.”
  • Application: Displays the application connected to the activity.
  • Status: What occurred as a result of the action; e.g., user logged in, or user was allowed access to application, or user denied access, or user logged in to <server_ip> using rdp (for RDP application).
  • IP Address: The IP address used for the logged activity.

To remove a column, click in the bar next to the Auto Refresh toggle, click the drop-down arrow and de-select the columns that you want to hide from the logs.

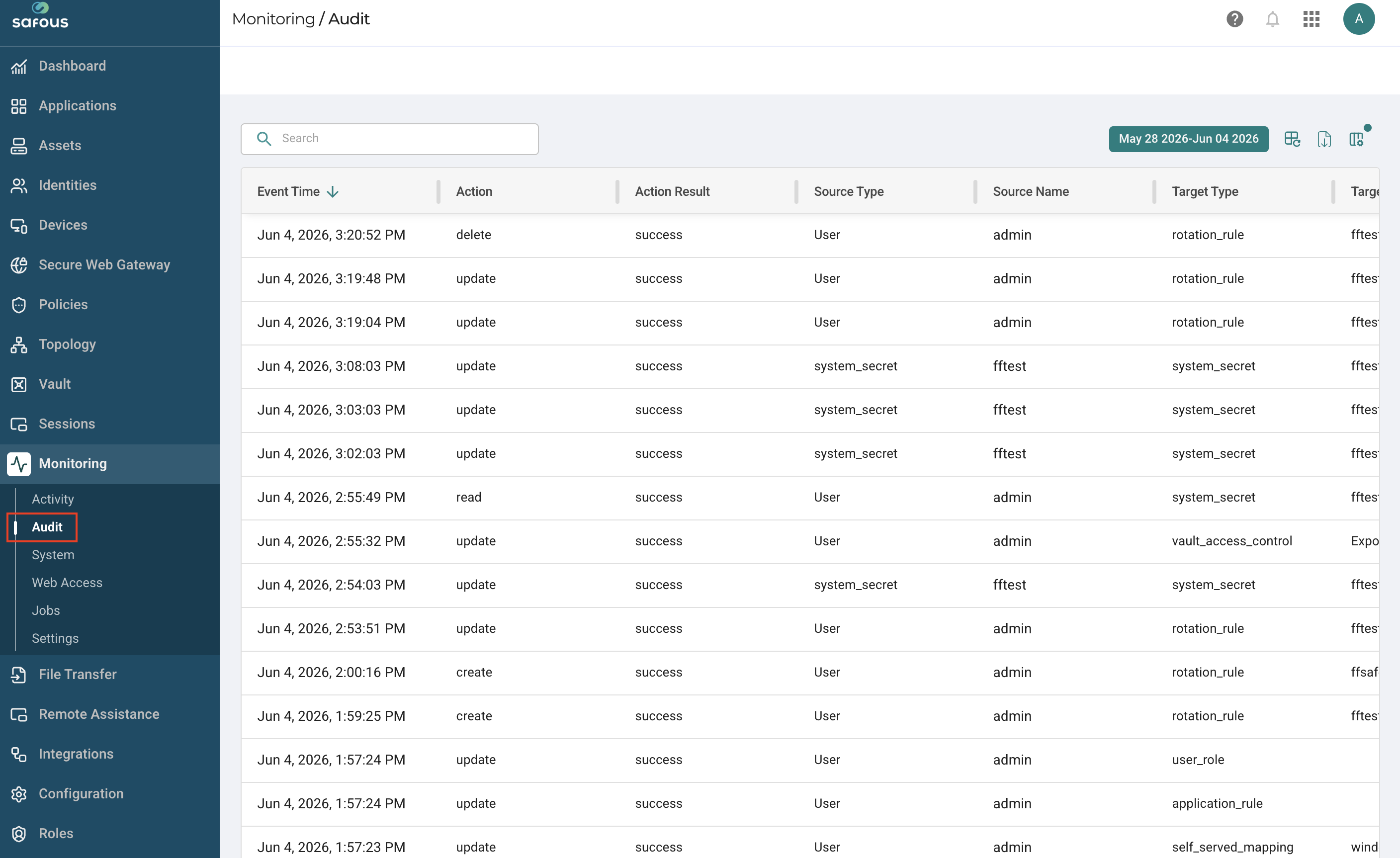

Audit Logs​

Audit logs manage the results of actions performed by the Administrator that are performed in Safous, displayed in a table. On the top left-hand side of the table, there is a boolean search option for data in the table based on the columns in the table. On the top right side of the table, there is a calendar to select the period of time in which the data should be presented.

The Audit log table presents data with the following columns:

  • Event_ID: Each event has a specific event ID number.
  • Date and Time: The date and time that the event took place, reflected in the Administrator’s local time.
  • Subject: The user’s email.
  • Action: Includes three options - create, update, or delete - for any particular activity.
  • Object Type: Includes users, simple_group, dynamic_group, mapping, mapping_category, policy, sites, console_roles, recording_roles, certificates, idap_saml, webhook, api_keys, and system_secrets. Mapping, API keys, policy, configuration, openID.
  • Object Name: This could be, for example, the name of the policy given by the Admin when the policy was created.
  • Result: Success or failure.

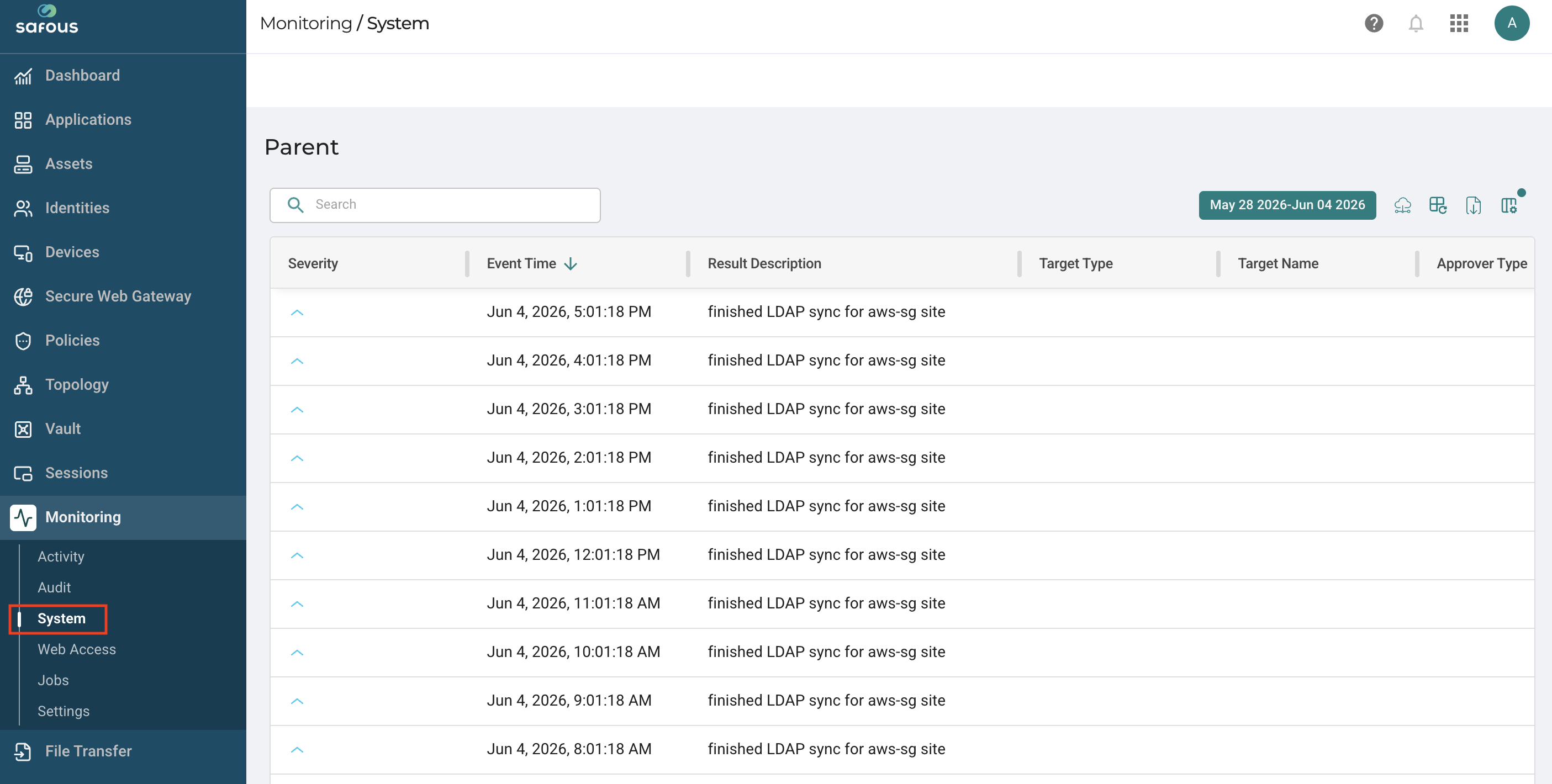

System Logs​

System logs record events - including when an event occurred, where it occurred (Authority), and other details about the event. On the top left-hand side of the table, there is a boolean search option for data displayed in the columns that appear in the logs. On the top right side of the table, there is a calendar to select the period of time in which the data should be presented.

The System log table presents data with the following columns:

  • Event ID: A specific number that relates to the event.
  • Date and Time: The date and time that the event occurred, in local time.
  • IDAC: The ID number of the IDAC in which the event occurred. The IDAC is hyperlinked, and when clicked, the IDACS and Edges screen displays under Configurations > IDACs and Edges.
  • Authority: The entity that has permission to perform a particular action; e.g., “health check,” “system alert,” “system,” or “cloud provider.”
  • Application: Shows the application connected to the event.
  • Status: What occurred as a result of an event; e.g., an IDAC was disconnected, system update, timeout, or failed to sample mappings.

Additional Logs​

Syslog​

For Syslog information, see the section Exporting Logs to Other Destinations .

Safous Connect Logs​

There are two options for checking the Safous Connect logs:

  • Right-click on Safous Agent and then click Export Logs.

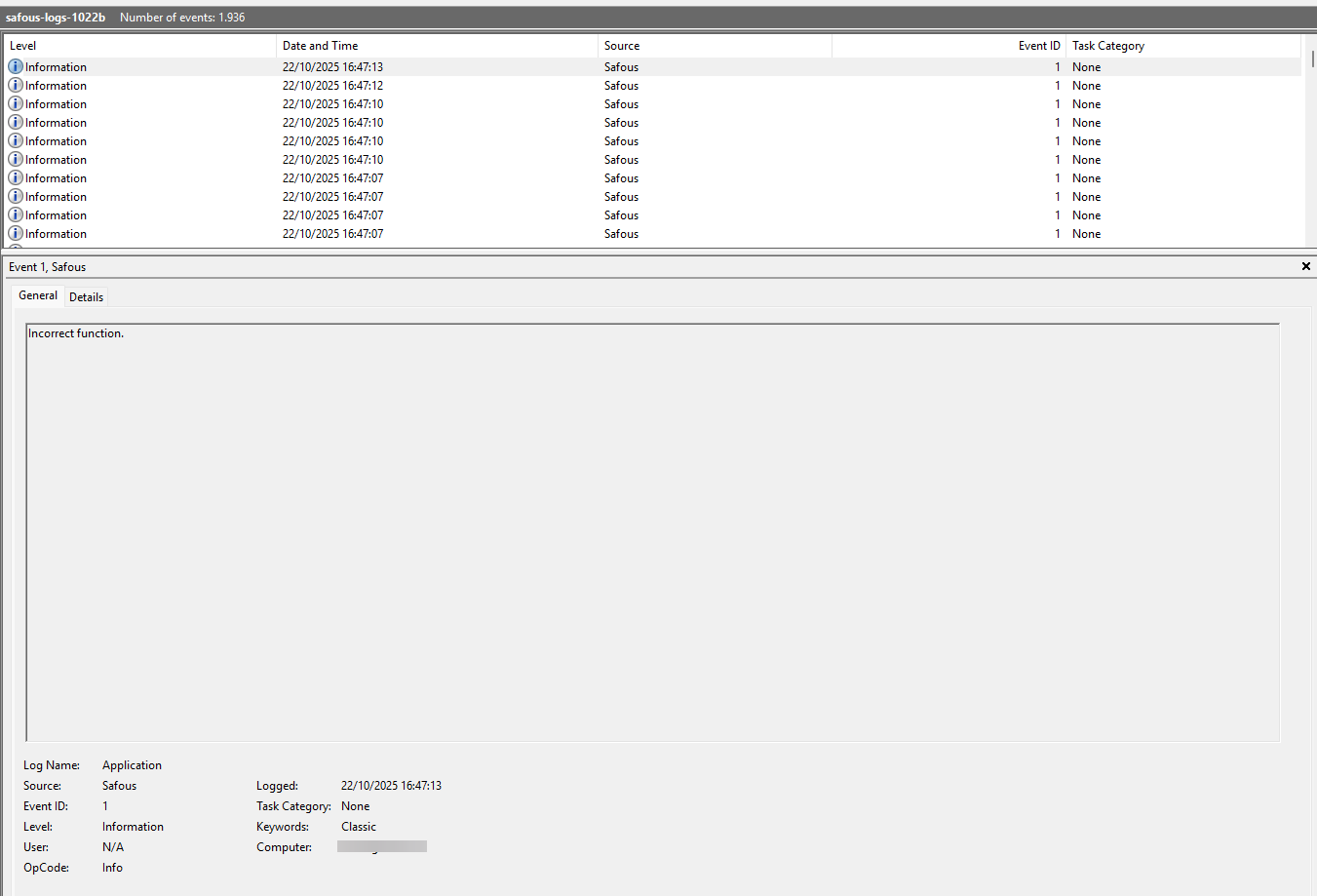

  • For Windows, open Event Viewer to display the log:
