Architecture

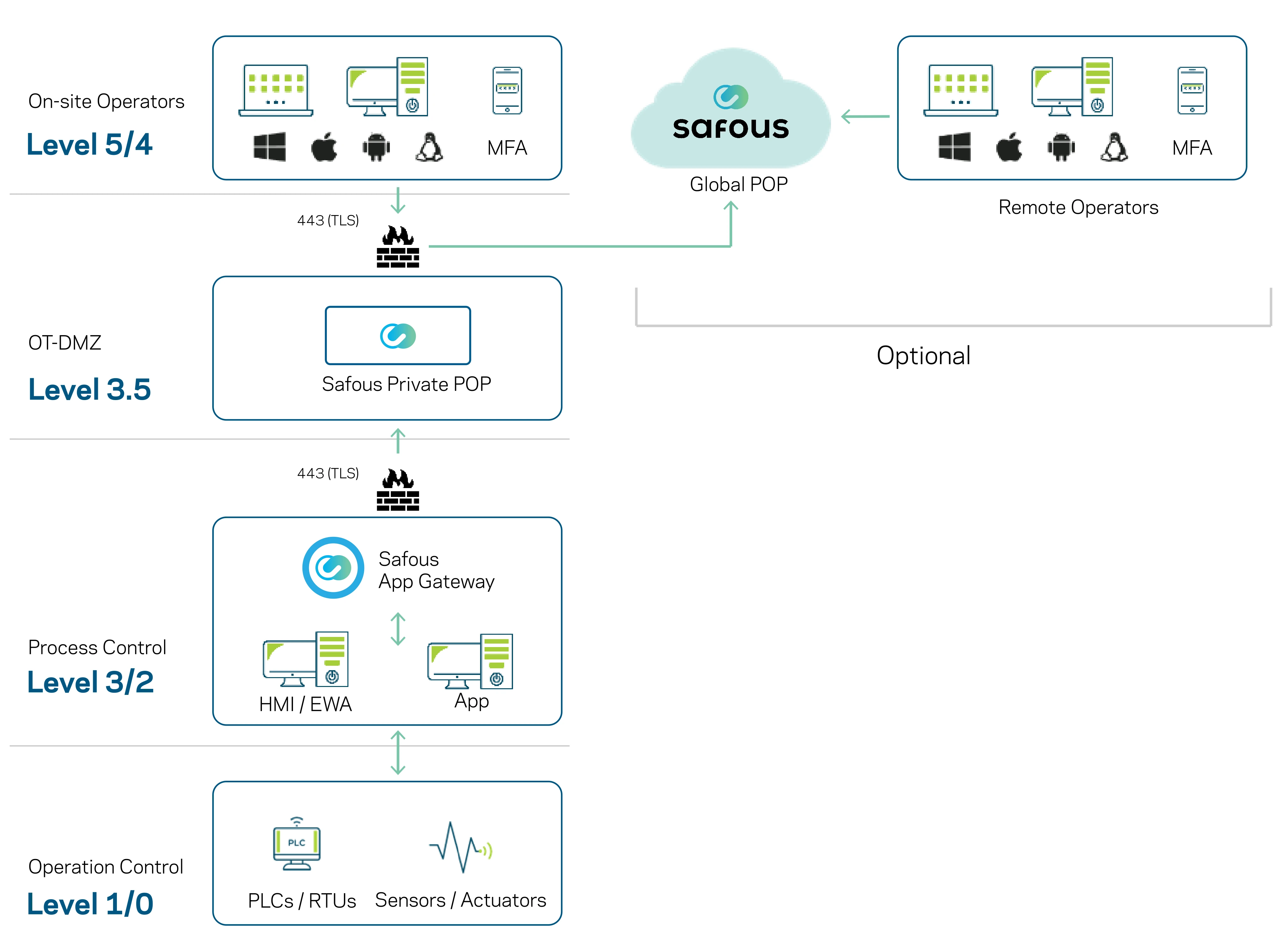

Safous I-SRA Architecture

Information based on the figure above

Safous I-SRA service consists of two main components:

  • Private POP
  • Private App Gateway

Private POPs​

  • Customer-managed POP that can be deployed in the in-premise organization environment.
  • Acts as a dedicated entry point to the I-SRA system - tailored to meet the organization's specific security, compliance, and infrastructure needs.
  • Complete offline deployment - ideal for secure facilities

Private App Gateway​

  • The App Gateway only requires egress traffic to Private POPs.
  • No ingress traffic needs to be opened, which helps mitigate the attack surface from outside of the isolated network.
  • Acts as a bridge to communicate with various internal business applications residing at customer sites (e.g., Office or Datacenter).
  • Complete offline deployment - ideal for secure facilities

Client Perspective​

  • From the client's point of view, the internal user is routed to the nearest POP.
  • Then, the user accesses the respective App Gateway to reach internal resources.

Authentication Support​

Safous I-SRA service supports a wide range of SSO authentication methods, including:

  • Traditional directory services such as Microsoft Active Directory (MS AD) and LDAP
  • Offline Identity Providers using SAML and OpenID Connect
