How to perform App Gateway Standard Checking

In the case of any issue with Safous App Gateway, Safous support team will require you to perform some standard checking in the App Gateway and collect the log files and screenshots.

Once collected, please compress it into zip file and attach it with your inquiry mail. These logs and screenshots will help the support team investigate the root cause and troubleshoot faster.

note

Before proceeding, please ensure that you have fulfilled the requirement for App Gateway written here.

warning

This procedure is suitable only for non-China environments.

Checking on the App Gateway Side

1. Login via SSH to your App Gateway using an account with sudo privilege.
   • Ensure that you set your favorite SSH client to record the output of the session
2. Execute the following command to perform the standard checking.

   • Connectivity check
     For "telnet" command, press "Ctrl + ']' " after the result shows, then type in "quit" and hit Enter.

     ping -c 10 repo.safous.com

     telnet repo.safous.com 443

     dig tcp.ztna.safous.com

     openssl s_client -connect <dig result of tcp.ztna.safous.com>:443 -servername tcp.ztna.safous.com

     ping -c 10 ubuntu.com

     telnet ubuntu.com 443

     telnet cert-gen.ztna.safous.com 443

   • Operating system requirement check

     cat /etc/\*release\*

     ufw status

     df -h
     lsblk

     free -m
     cat /proc/cpuinfo

     date

     sudo crontab -l
     cat /var/log/cron.log

     ntpq -pn

   • Container check
     For the "docker stats" command, press "Ctrl + C" after 5 seconds of running.

     docker ps -a

     docker images

     cat /etc/cyolo/config/docker-compose.yml

     docker logs config\_idac\_1  , or
     docker logs config-idac-1

     docker stats config\_idac\_1, or
     docker stats config-idac-1

   • SSL certificate check

     ls -lha /etc/cyolo/certs

     ls -lha /etc/safous/certs

     openssl x509 -noout -in /etc/cyolo/certs/cert.pem -text
     openssl x509 -noout -in /etc/cyolo/certs/cert.pem -subject -dates

     openssl x509 -noout -in /etc/safous/certs/cert.pem -text
     openssl x509 -noout -in /etc/safous/certs/cert.pem -subject -dates

     cat /etc/safous/tools/certbot-renew.sh

   • Files check

     ls -lha /etc/cyolo/
     ls -lha /etc/safous/

     cat /etc/safous/.config
     cat /etc/safous/.serial

Checking on the Admin Portal Side

1. Login to https://portal.safous.com/ using your Safous Admin credentials

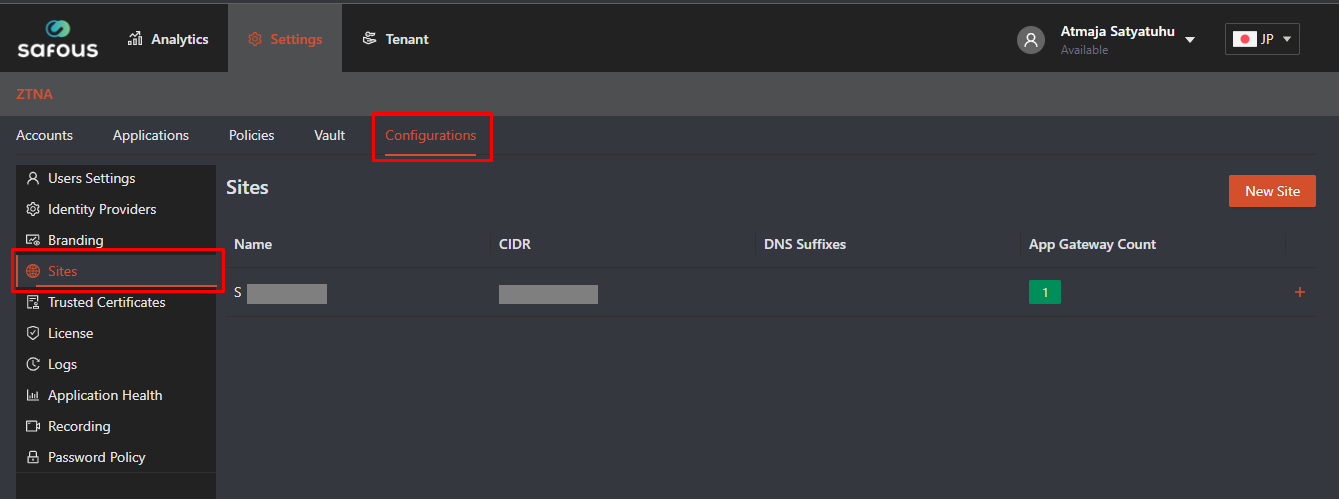

2. Navigate to Settings > ZTNA > Configuration > Sites

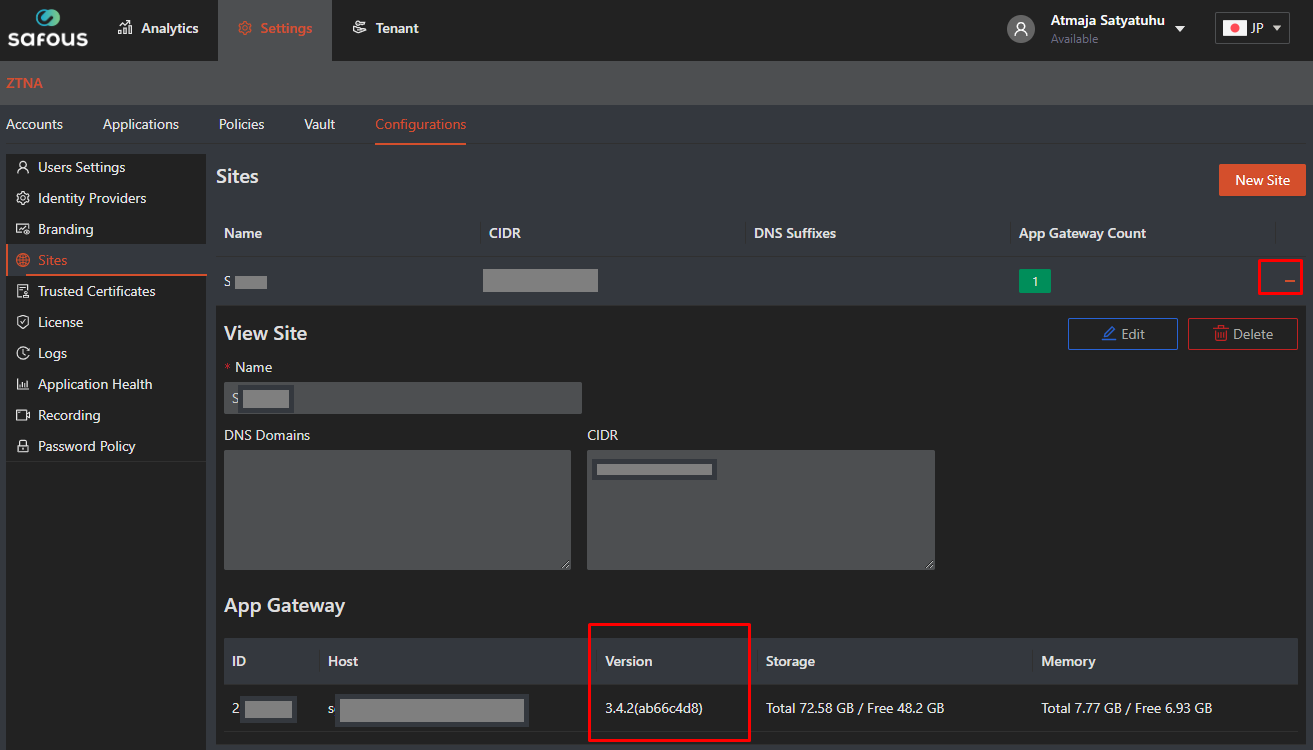

3. Expand installed sites configuration, it should show the App Gateway version.
   Screenshot the screen.


After you have collected all relevant logs and screenshots, please compress them into a zip file, then attach it to your inquiry mail to the support team.
